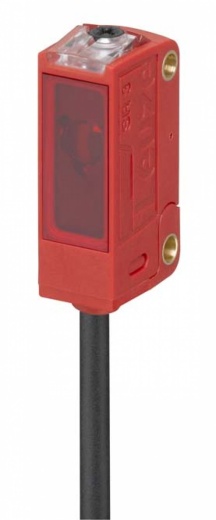

Производитель: Leuze Electronic (Германия)
Обработка заказа в течение дня
Возможен выезд специалиста на производство
Техническая консультация и квалифицированная помощь в подборе оборудования
Предоставление технической документации
Производитель: Leuze Electronic (Германия)
Основные характеристики
Basic data | |
Series | 3C |
Operating principle | Reflection principle |
Special version | |
Special version | Autocollimation |
Optical data | |
Operating range | 0 ... 4 m, With reflector TK(S) 100x100 |
Operating range limit | 0 ... 5 m, With reflector TK(S) 100x100 |
Light source | LED, Red |
Electrical data | |
Protective circuit | Polarity reversal protection, Short circuit protected |
Performance data | |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Residual ripple | 0 ... 15 %, From UB |
Open-circuit current | 0 ... 15 mA |
Outputs | |
Number of digital switching outputs | 2 Piece(s) |
Switching output 1 | |
Switching element | Transistor, PNP |
Switching principle | Light switching |
Switching output 2 | |
Switching element | Transistor, PNP |
Switching principle | Dark switching |
Timing | |
Switching frequency | 1,500 Hz |
Response time | 0.33 ms |
Connection 1 | |
Function | Voltage supply, Signal OUT |
Type of connection | Cable |
Cable length | 2,000 mm |
Number of conductors | 4 -wire |
Mechanical data | |
Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
Housing material | Plastic |
Plastic housing | PC-ABS |
Lens cover material | Plastic / PMMA |
Net weight | 50 g |
Type of fastening | Via optional mounting device, Two M3 threaded sleeves |
Compatibility of materials | ECOLAB |
Operation and display | |
Operational controls | Teach button |
Environmental data | |
Ambient temperature, operation | -40 ... 60 °C |
Certifications | |
Degree of protection | IP 67, IP 69K |
Protection class | III |
Certifications | c UL US |
Standards applied | IEC 60947-5-2 |
Classification | |
Customs tariff number | 85365019 |
eCl@ss 5.1.4 | 27270902 |
eCl@ss 8.0 | 27270902 |
eCl@ss 9.0 | 27270902 |
eCl@ss 10.0 | 27270902 |
eCl@ss 11.0 | 27270902 |
ETIM 5.0 | EC002717 |
ETIM 6.0 | EC002717 |
ETIM 7.0 | EC002717 |
