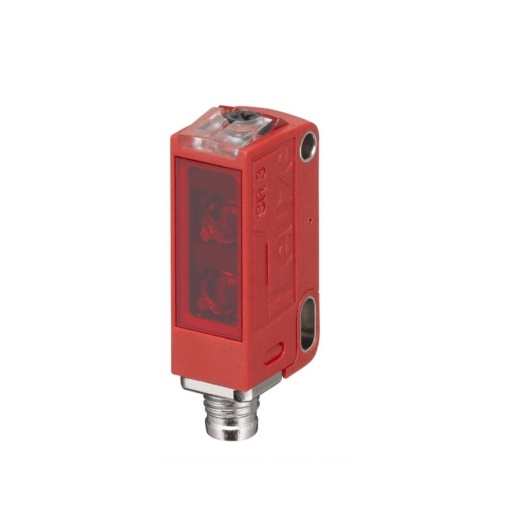

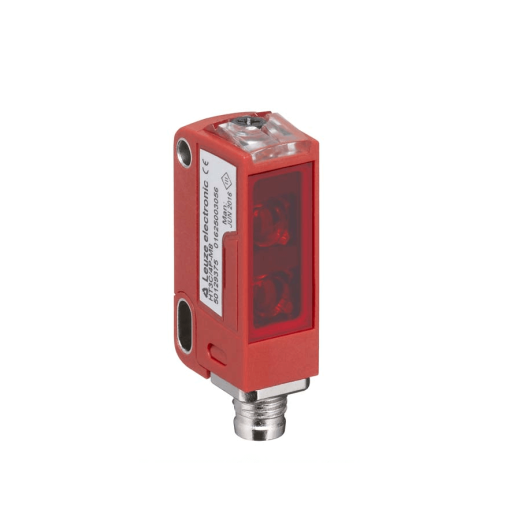

Производитель: Leuze Electronic (Германия)
Обработка заказа в течение дня
Возможен выезд специалиста на производство
Техническая консультация и квалифицированная помощь в подборе оборудования
Предоставление технической документации
Производитель: Leuze Electronic (Германия)
Основные характеристики
Basic data | |
Series | 3C |
Operating principle | Diffuse reflection principle with background suppression |
Optical data | |
Black-white error | < 10% up to 170 mm |
Operating range, white 90% | 0.015 ... 0.4 m |
Operating range, gray 18% | 0.015 ... 0.25 m |
Operating range, black 6% | 0.015 ... 0.17 m |
Operating range limit | 0.015 ... 0.4 m |
Adjustment range | 20 ... 400 mm |
Light source | Laser, Red |
Laser class | 1, IEC/EN 60825-1:2007 |
Light spot size [at sensor distance] | 1 mm [400 mm] |
Shift angle | Typ. ± 2° |
Electrical data | |
Protective circuit | Short circuit protected, Overvoltage protection, Polarity reversal protection |
Performance data | |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Residual ripple | 0 ... 10 %, From UB |
Open-circuit current | 0 ... 20 mA |
Outputs | |
Number of digital switching outputs | 2 Piece(s) |
Switching output 1 | |
Switching element | Transistor, NPN |
Switching principle | Light switching |
Switching output 2 | |
Switching element | Transistor, NPN |
Switching principle | Dark switching |
Timing | |
Switching frequency | 3,000 Hz |
Response time | 0.16 ms |
Connection 1 | |
Function | Voltage supply, Signal OUT |
Type of connection | Connector |
Thread size | M8 |
Material | Metal |
No. of pins | 4 -pin |
Mechanical data | |
Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
Housing material | Plastic |
Plastic housing | PC-ABS |
Lens cover material | Plastic / PMMA |
Net weight | 10 g |
Type of fastening | Through-hole mounting, Via optional mounting device |
Compatibility of materials | ECOLAB |
Operation and display | |
Operational controls | Multiturn potentiometer |
Environmental data | |
Ambient temperature, operation | -40 ... 55 °C |
Certifications | |
Degree of protection | IP 67, IP 69K |
Protection class | III |
Certifications | c UL US |
Standards applied | IEC 60947-5-2 |
Classification | |
Customs tariff number | 85365019 |
eCl@ss 5.1.4 | 27270904 |
eCl@ss 8.0 | 27270904 |
eCl@ss 9.0 | 27270904 |
eCl@ss 10.0 | 27270904 |
eCl@ss 11.0 | 27270904 |
ETIM 5.0 | EC002719 |
ETIM 6.0 | EC002719 |
ETIM 7.0 | EC002719 |
