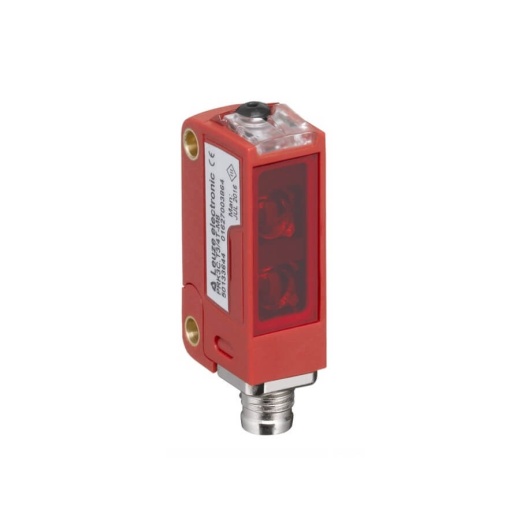

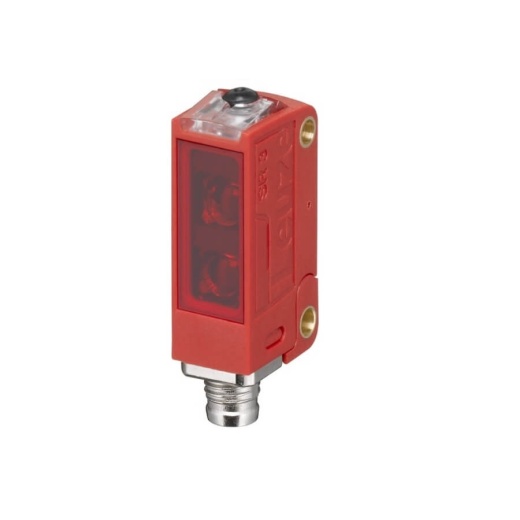

Производитель: Leuze Electronic (Германия)
Обработка заказа в течение дня
Возможен выезд специалиста на производство
Техническая консультация и квалифицированная помощь в подборе оборудования
Предоставление технической документации
Производитель: Leuze Electronic (Германия)
Основные характеристики
| Basic data | |
| Series | 3C |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | |
| Special version | 2 independent switching outputs |
| Optical data | |
| Black-white error | < ± 3 mm |
| Operating range | 0.01 ... 0.15 m |
| Adjustment range | 30 ... 150 mm |
| Light source | LED, Red |
| Light spot size [at sensor distance] | 10 mm x 10 mm [100 mm] |
| Electrical data | |
| Protective circuit | Short circuit protected, Polarity reversal protection |
| Performance data | |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 25 mA |
| Outputs | |
| Number of digital switching outputs | 2 Piece(s) |
| Switching output 1 | |
| Switching element | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching output 2 | |
| Switching element | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Timing | |
| Switching frequency | 750 Hz |
| Response time | 0.66 ms |
| Interface | |
| Type | IO-Link |
| IO-Link | |
| Specification | V1.1 |
| Connection 1 | |
| Function | Voltage supply, Signal OUT |
| Type of connection | Connector |
| Thread size | M8 |
| Material | Metal |
| No. of pins | 4 -pin |
| Mechanical data | |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 10 g |
| Type of fastening | Via optional mounting device, Two M3 threaded sleeves |
| Compatibility of materials | ECOLAB |
| Operation and display | |
| Operational controls | Teach button |
| Environmental data | |
| Ambient temperature, operation | -40 ... 60 °C |
| Certifications | |
| Degree of protection | IP 69K, IP 67 |
| Protection class | III |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
| Classification | |
| Customs tariff number | 85365019 |
| eCl@ss 5.1.4 | 27270904 |
| eCl@ss 8.0 | 27270904 |
| eCl@ss 9.0 | 27270904 |
| eCl@ss 10.0 | 27270904 |
| eCl@ss 11.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
