Производитель: Leuze Electronic (Германия)
Обработка заказа в течение дня
Возможен выезд специалиста на производство
Техническая консультация и квалифицированная помощь в подборе оборудования
Предоставление технической документации
Производитель: Leuze Electronic (Германия)
Основные характеристики
| Basic data | |

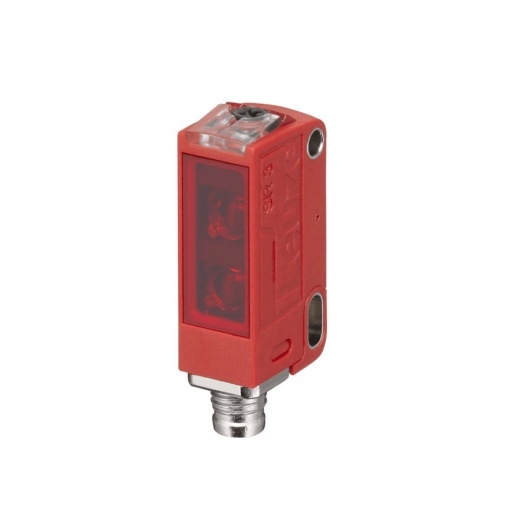

| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Optical data | |
| Operating range | 0.05 ... 8.5 m |
| Operating range limit | 0.05 ... 10 m |
| Electrical data | |
| Protective circuit | Polarity reversal protection, Short circuit protected |
| Performance data | |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 20 mA |
| Outputs | |
| Number of digital switching outputs | 2 Piece(s) |
| Switching output 1 | |
| Switching element | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching output 2 | |
| Switching element | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Timing | |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Connection 1 | |
| Function | Voltage supply, Signal OUT |
| Type of connection | Connector |
| Thread size | M8 |
| Material | Metal |
| No. of pins | 4 -pin |
| Mechanical data | |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 10 g |
| Type of fastening | Via optional mounting device, Through-hole mounting |
| Compatibility of materials | ECOLAB |
| Operation and display | |
| Operational controls | 270° potentiometer |
| Environmental data | |
| Ambient temperature, operation | -40 ... 60 °C |
| Certifications | |
| Degree of protection | IP 69K, IP 67 |
| Protection class | III |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
| Classification | |
| Customs tariff number | 85365019 |
| eCl@ss 5.1.4 | 27270901 |
| eCl@ss 8.0 | 27270901 |
| eCl@ss 9.0 | 27270901 |
| eCl@ss 10.0 | 27270901 |
| eCl@ss 11.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
